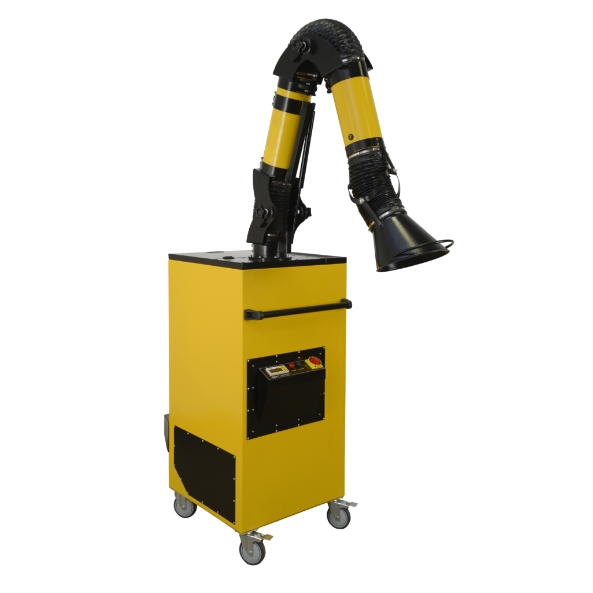

Mobile Welding Fume Extractor

Description

Design

• Compact slim body
• Increased performance 1400 m³/h;
• Low noise level <69 dBA;
• Vertical flow of cleaned air goes through the discharged exhaust lattice on upper lid and does not create draughts or raise dust from surfaces;
• Convenient controller location;
• Convenient mounting of activated carbon filter on perforated screen;
• Two compact dust recovery tanks slide out the extractor body. That allows the operator not to come into contact with the dusty filter cartridge cabinet and provides its safe and easy cleaning into disposable bag;
• Oil-water separator defensive bumper;
• Convenient power cable storage device
• Big casters with smooth motion for uneven floors
• Maintenance and operating instructions with large graphical icons are placed on filter body;
• Possibility of SovPlym BEA-M-Xs and BEA-M-xSL extraction arms mounting;
• The ability to connect exhaust hose with an air intake funnel and magnetic holder by a spool-piece

Filtration system

• Three filtration stages: mesh prefilter, main cartridge of high filtration class E11 (PE with ePTFE membrane), activated carbon cassette;
• Double spark and chark protection: metal bumper screen and multilayer galvanized cancellated prefilter;
• Optional two types of compressed air automatic purification: rotating frame with nozzles, cowl insert;
• Vertical position of main filter cartridge;
• Quick replacement of main cartridge through upper lid with no tool use;
• Four types of filtration materials for different technological processes;
• Maximum independence due to a built-in oil-free compressor (only 230 V supply is required).

Modern controller and its operation

• Modern automatic self-cleaning system controller with built-in electronic differential manometer and ΔP-function, which starts the cleaning process upon reaching by main cartridge the preset pollution level;
• Built-in oil-water separator with pressure control and manometer;
• Two-line text display controller shows current ΔP (cartridge pollution) in operation mode and control menu – in setup mode;
• Compressed air and energy saving due to ΔP-function;
• Extra purification autorun after fan stop;
• Light and audio alarm
• Switching remote of extractor and air nozzle light of extraction arm.
