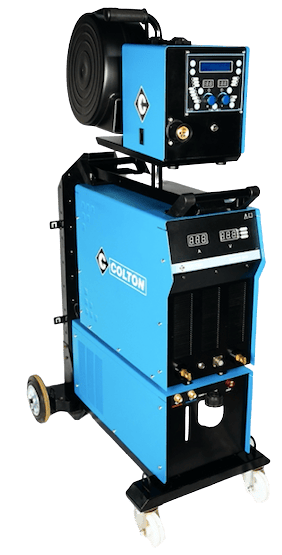

iSpeed 500
Add to Wishlist
Add to Wishlist
FEATURES AND BENEFITS
- Full Digital architecture with high level of integration & low failure rate.
- Advanced 40KHz inverter for high pulsed currents.
- Optimized Synergic welding characteristics for different materials, gas & wire diameters ensuring welder ease & low spatter
- Special programs to set/pre-set certain functions
- 81 Process Modes for almost all applications
- Modified wave control feature offers better welding results, stable arc at low currents, less spatter at high currents & perfect arc start/stops.
- All process/ parameters are controlled from the wire feeder.
- Special process software upgrades for added flexibility.
- Optional: Robot or PLC interface
MULTI FUNCTION INVERTER:
MMAW LIFT TIG
SHORT CKT TRANSFER MIG/MAG PULS MIG
DOUBLE PULSE MIG LOW HEAT GMAW
ROOT WELDING GMAW DEEP PENETRATION GMAW
[maxbutton id=”1″ ]
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description
TECHNICAL DATA | I SPEED 500 | UNIT |
---|---|---|
Input Supply | 415/3 | V / Ph |
Frequency | 50/60 | Hz |
Input Power@ 100% | 17 | KVA |
Input Current | 35 | A |
Open Circuit Voltage | 84 | V |
Welding Current Range | 20-500 | A |
Welding Voltage Range | 15-50 | V |
Cooling | Air Cooled | – |
Insulation class | H | – |
Protection class | IP 22 | IP |
Duty Cycle | 60 | % |
Trigger modes | 2T/4T/ A4T/ SPOT | – |
Wire Sizes | 0.8, 1.0, 1.2, 1.6 | mm |
Dimensions(L*W*H) | 650*320*565 | mm |
Weight | 68 | Kg |
WIRE FEEDER | 4 ROLL | UNIT |
---|---|---|
Wire Diameter | 0.8, 1.0,1.2, 1.6 | mm |
Wire Feed Speed | 1.5 -20 | m/min |
Weight | 14 | Kg |
