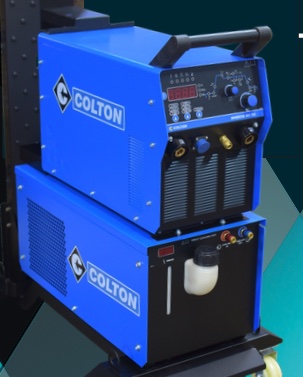

iTIG 402 (DC Pulsed TIG)
Add to Wishlist
Add to Wishlist
IGBT Module Digital Inverter Pulsed DC TIG Welding Machine
FEATURES AND BENEFITS
- Portable digital DC TIG machine, high efficient inverting technology
- Perfect welding quality on heat sensitive material and aluminium
- Fully controlled pulse wave, including pulse duty cycle, base current and pulse frequency
- Multi controllable parameters like pre-gas , post gas, up slope, down slope, initial current, and final current
- HF arc ignition , outstanding arc starting performance
- 2/4 trigger mode, suitable for long/short well seam
- Fast dynamic response, good arc characteristics
- Fuse size selectable, 16A/25A
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description
| TECHNICAL DATA | iTIG 402 | UNIT |
|---|---|---|
| Supply voltage | 415/3 | V |
| Power Factor | 0.9 | – |
| Fuse (Slow) | 20 | A |
| Max Power @ 60% | 12 | KVA |
| OCV | 65 | V |
| Amps Range | 5-400 | V |
| Duty Cycle @ 60% | 400 | – |
| Tig ignition | HF | Type |
| DownSlope | 10 | Sec |
| Post Flow | 3-45 | Sec |
| Pulsing | Yes | – |
| Insulation | H | |
| Protection Class | IP 23 | |
| Type of cooling | Forced Air | |
| Dimensions (L*W*H) | 600*300*550 | mm |
| Weight | 42 | Kg |
STANDARD EQUIPMENT
- 1 power source
- 1 connected primary cable L=3m
- 1 welding torch (with accessories)
- 1 ground cable L=3m with clamp and quick plug
- 1 quick plug
- 1 electrode holder (optional)
RECOMMENDED APPLICATIONS
- Construction and installation
- Mechanical maintenance
- Repair and manufacturing
- Chemical containers and manufactures
- Pipeline industry
- Cans, and handmade crafts
- Office furniture supplies
PROCESS
Process: DC TIG (GTAW)/STICK (SMAW) / PULSED TIG (GTAW-P)
